Description

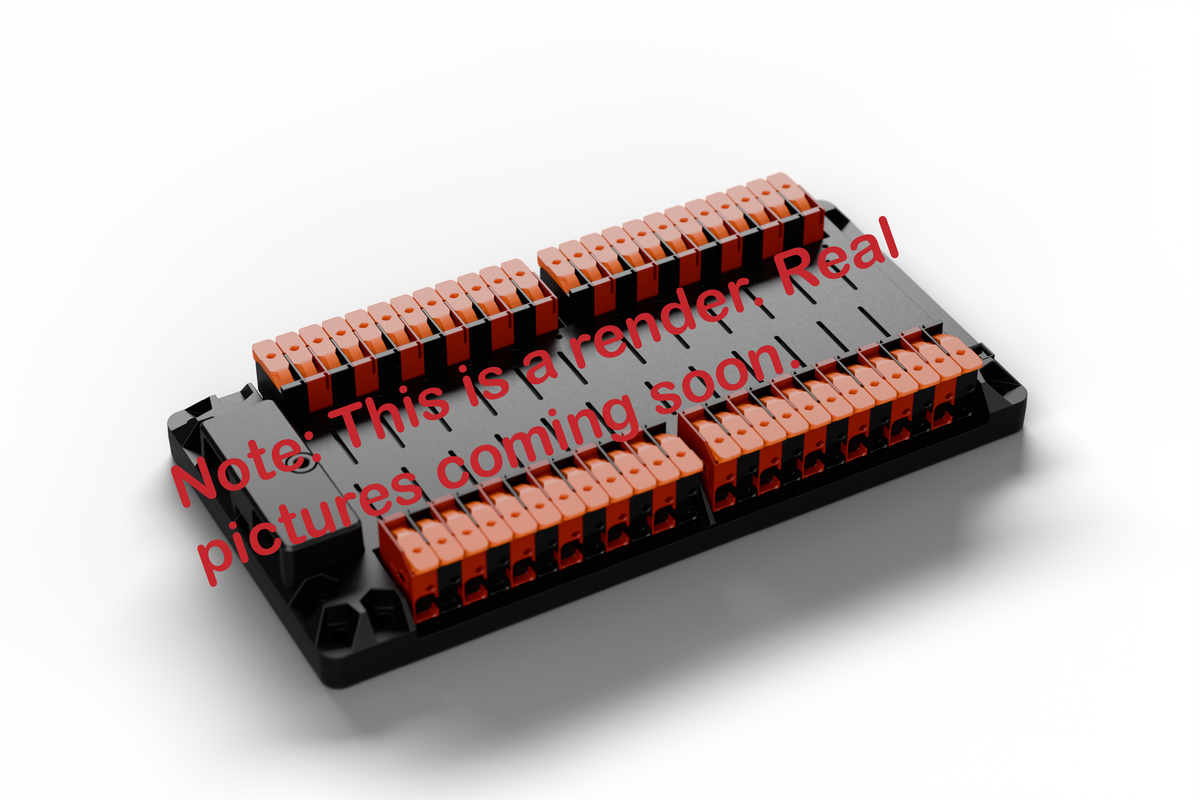

The Thrifty PowerHub is the Thrifty solution for power distribution on the robot. Product pictures coming soon, mold is in progress. Shipping before kickoff 2027.
Features:
- 24 high current channels with red/black toolless WAGO 2606 series, ATO size breakers, perfect for use with Thrifty Breakers!
- M6 screw terminal inputs
- Built in logging over CAN and USB-C, with low value shunt resistors for minimal voltage drop (testing doc coming soon)
- ESD Protection
- Input Voltage: 4.75V - 18V
- Mounting Holes: #10 Clearance (0.197in/5mm) on 0.5in pitch
- Physical Specifications:
- 9.138" length
- 4.611" width
- 1.213" height
- 1.24lb
