Description
Note: The Sliding Elevator Bearing Block kit plates have been updated for 2024 to improve the ability to mount to grid pattern tubing. The threaded holes have also been changed to 1/4-20 to utilize a thicker bolt for the side bearings.
Full kit weight: .75 pounds - 1 bearing block + hardware and bearings weighs 3 ounces.

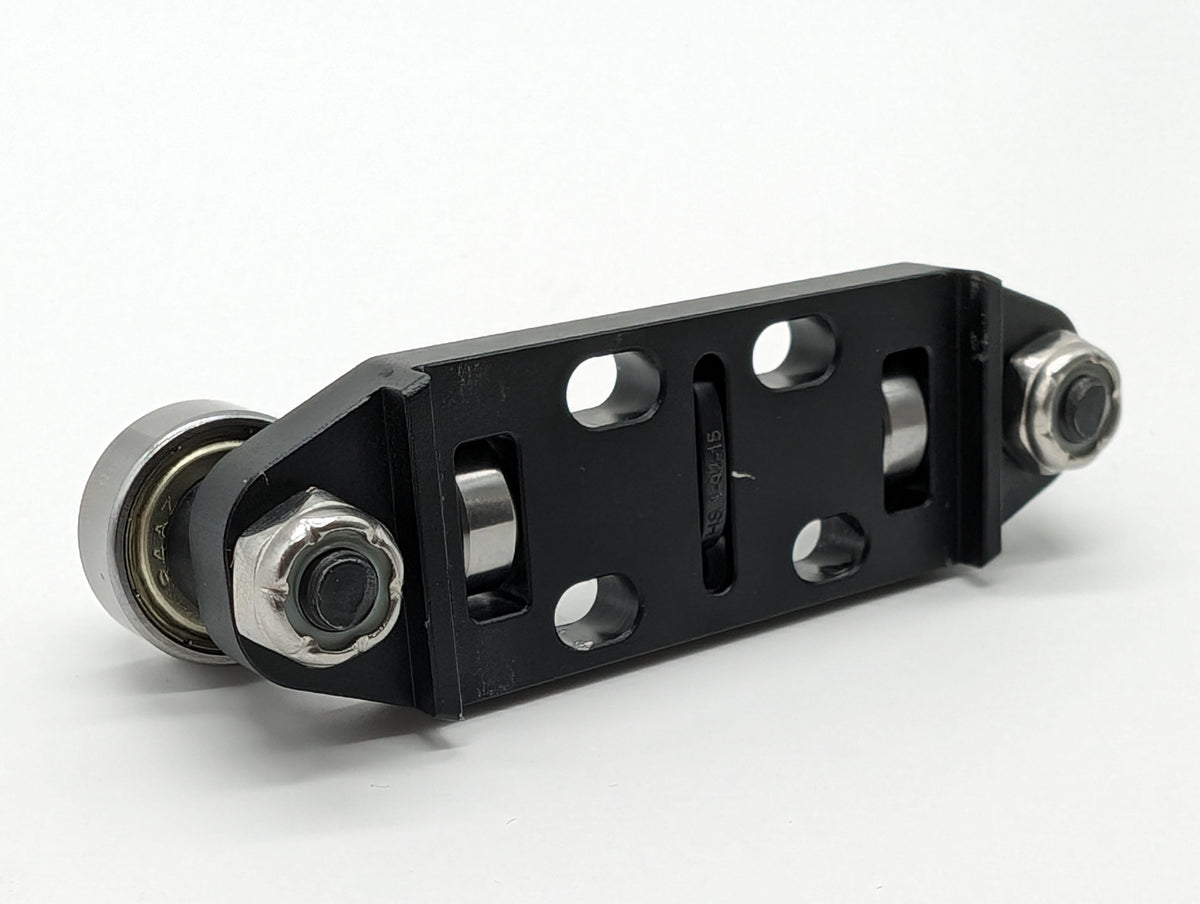

The Sliding Elevator Bearing Block Kit provides enough hardware to build up one stage of a sliding 2" x 1" box extrusion elevator.
For every stage in your elevator's design, add another kit.
1 stage elevator = 1 kit
2 stage elevator + carriage = 2 kits
Part Name - Sliding Elevator Bearing Block Kit (1 kit per stage) |
QTY |
Part Number |
|
1/4-20 Thin Locknut |
8 | |
|
Sliding Bearing Block Plate - 2024 update |
4 |
ELEV-SLIDE-001 |
|
1/4" Diameter x 1.75" Long Steel Dowel |
4 |
ELEV-SLIDE-002 |
|
Bearing Block Shoulder Bolt Spacer |
8 |
ELEV-SLIDE-003 |
|
1/4-20 x 1" Long Button Head Bolt |
8 |
|
|
.50OD x .25ID x .188WD Bearing |
8 |
TTB-0027 |
|
.75OD x .25ID x .28WD Bearing |
8 |
TTB-0034 |
|
5/8" Long 10-32 Button Head Screw |
16 |
13116 |
|
10-32 Thin Locknut |
16 |
18196 |
|
Small 4" Zip Ties |
4 |
ZIP |
