Description

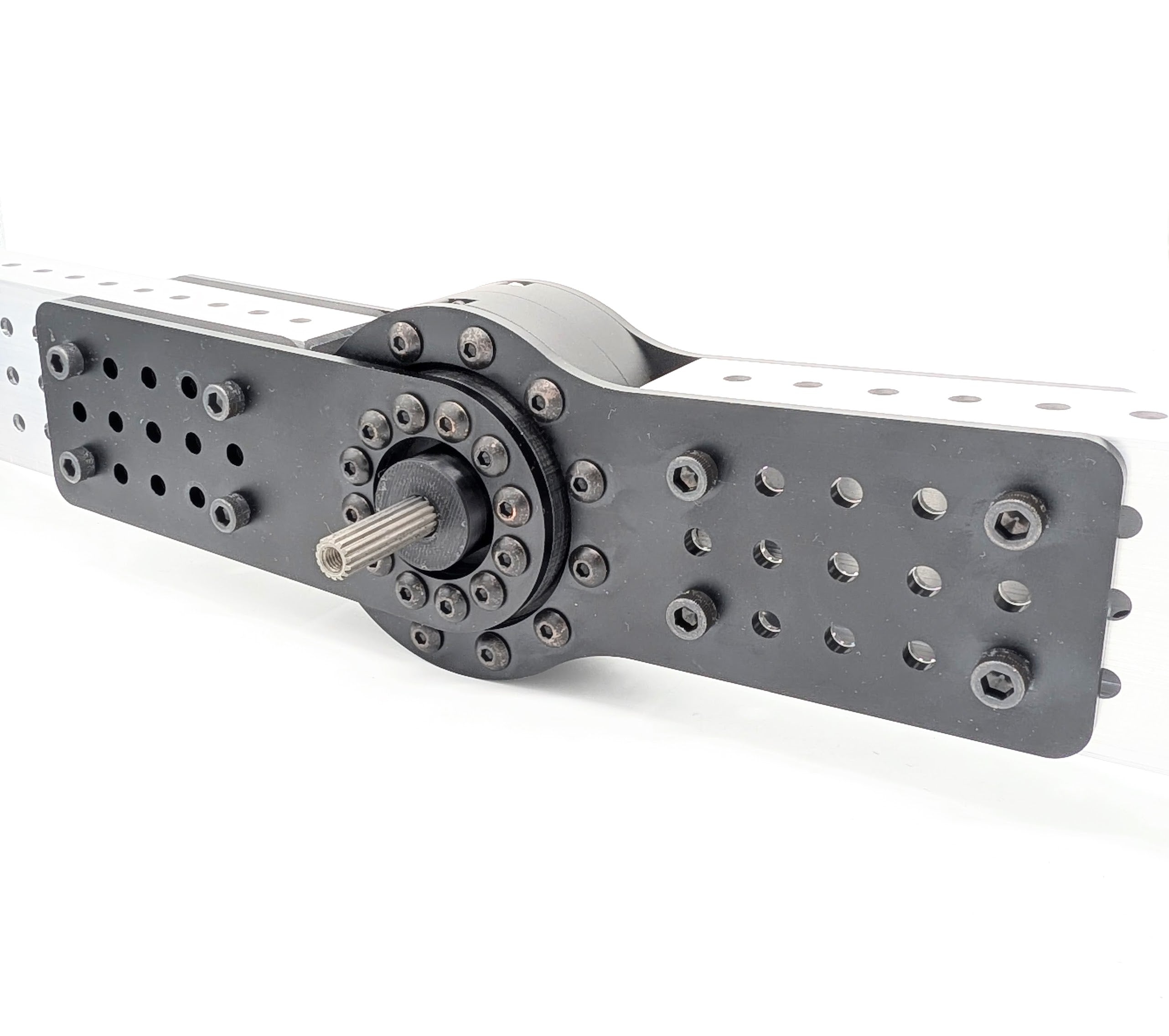

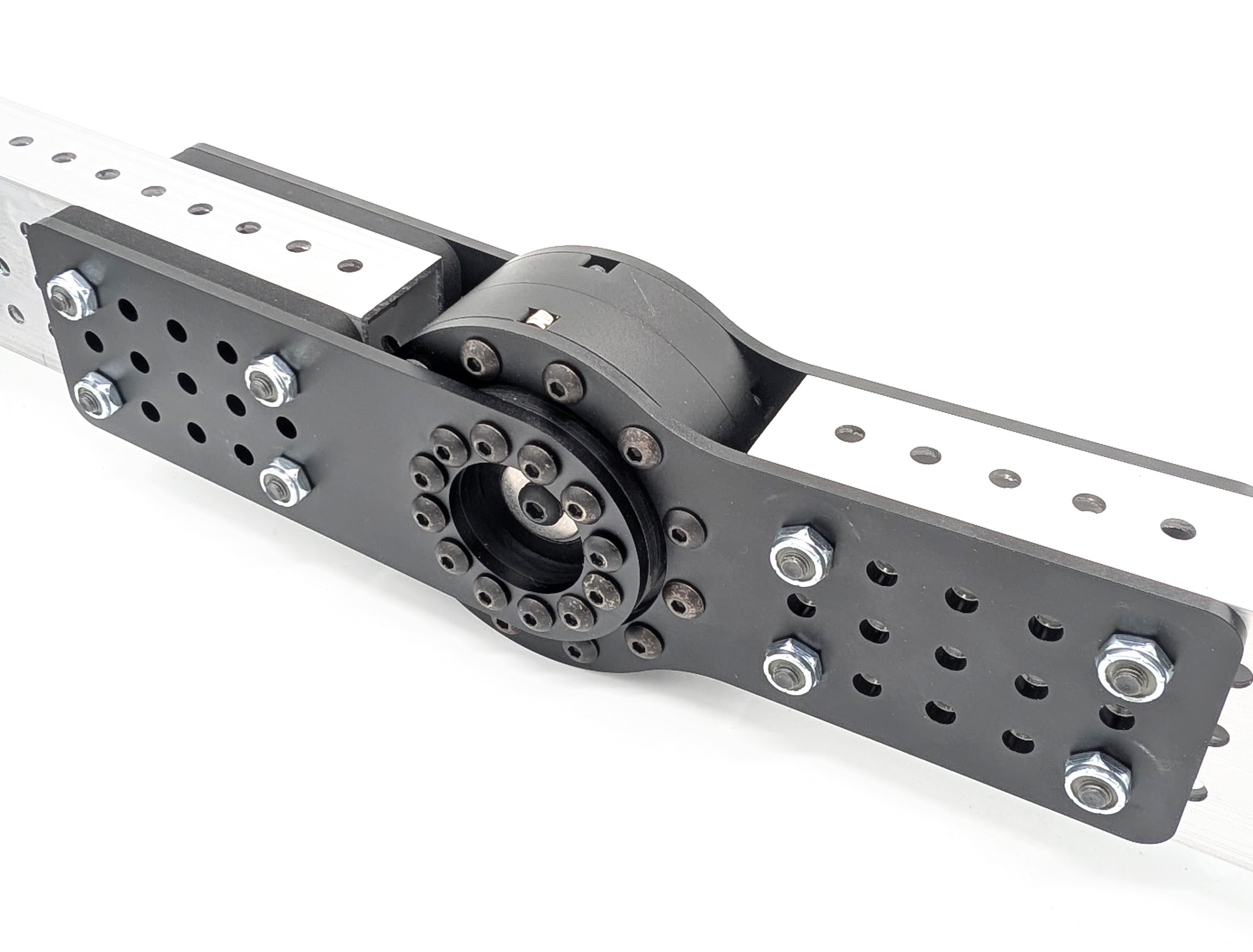

This kit includes all the parts you need to quickly and easily mount your Thrifty Cycloidal gearbox inline with 2" x 1" grid pattern box extrusion.
See the Gitbook documentation on the many ways to use the Thrifty Cycloidal.

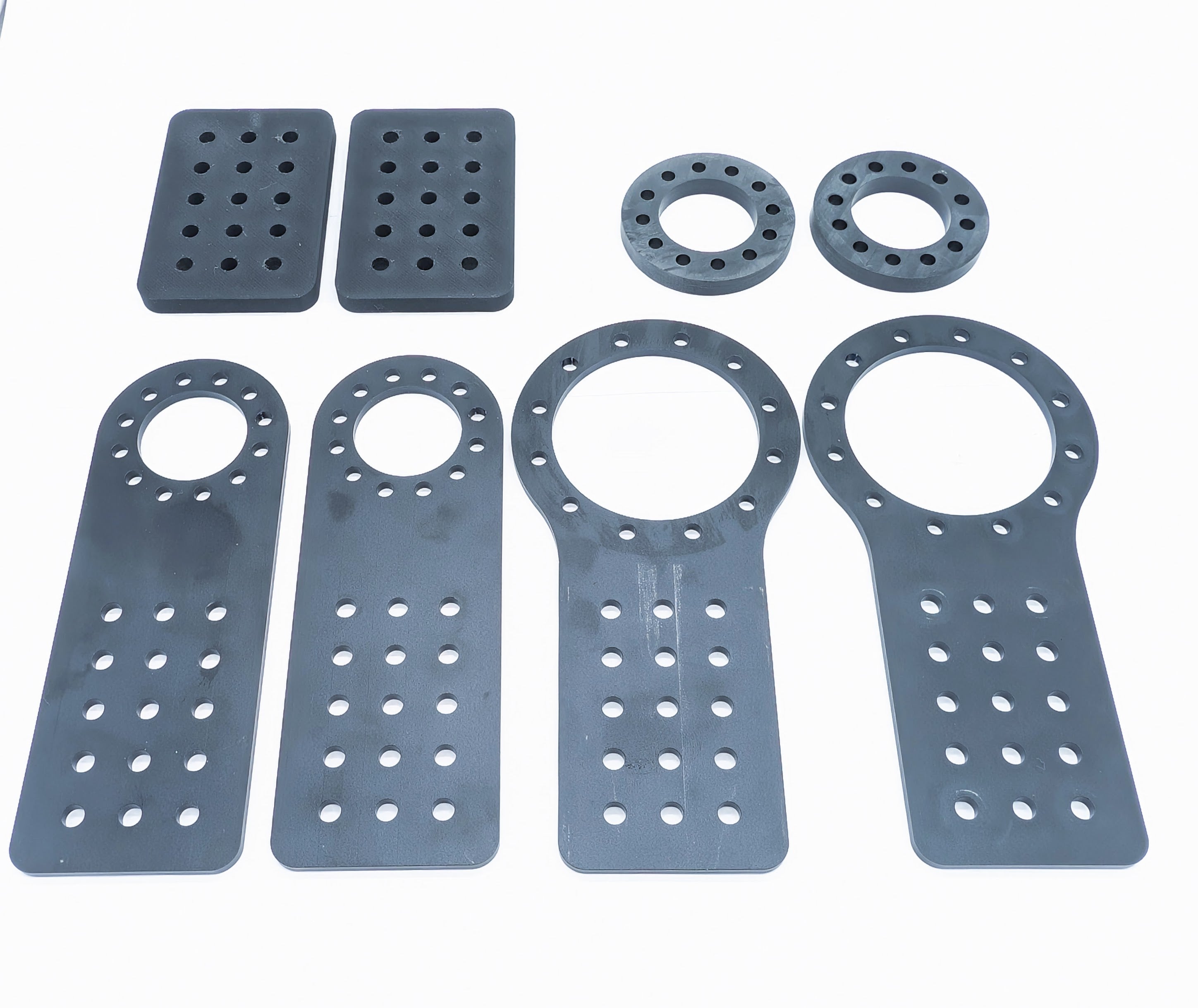

Kit contents:
| Thrifty Cycloidal Arm Joint Kit | TTB-0302 | QTY |
| 2.5" Long SplineXS Shaft | TTB-0303 | 1 |
| Inner Cycloidal Joint Gusset | TTB-CYC-ARM-01 | 2 |
| Outer Cycloidal Joint Gusset | TTB-CYC-ARM-02 | 2 |
| 1/4" Thick Cycloidal Spacer | TTB-CYC-ARM-03 | 2 |
| Cycloidal Joint 2x1 Spacer | TTB-CYC-ARM-04 | 2 |
| Hex Adapter Offset Spacer | TTB-CYC-ARM-05 | 1 |

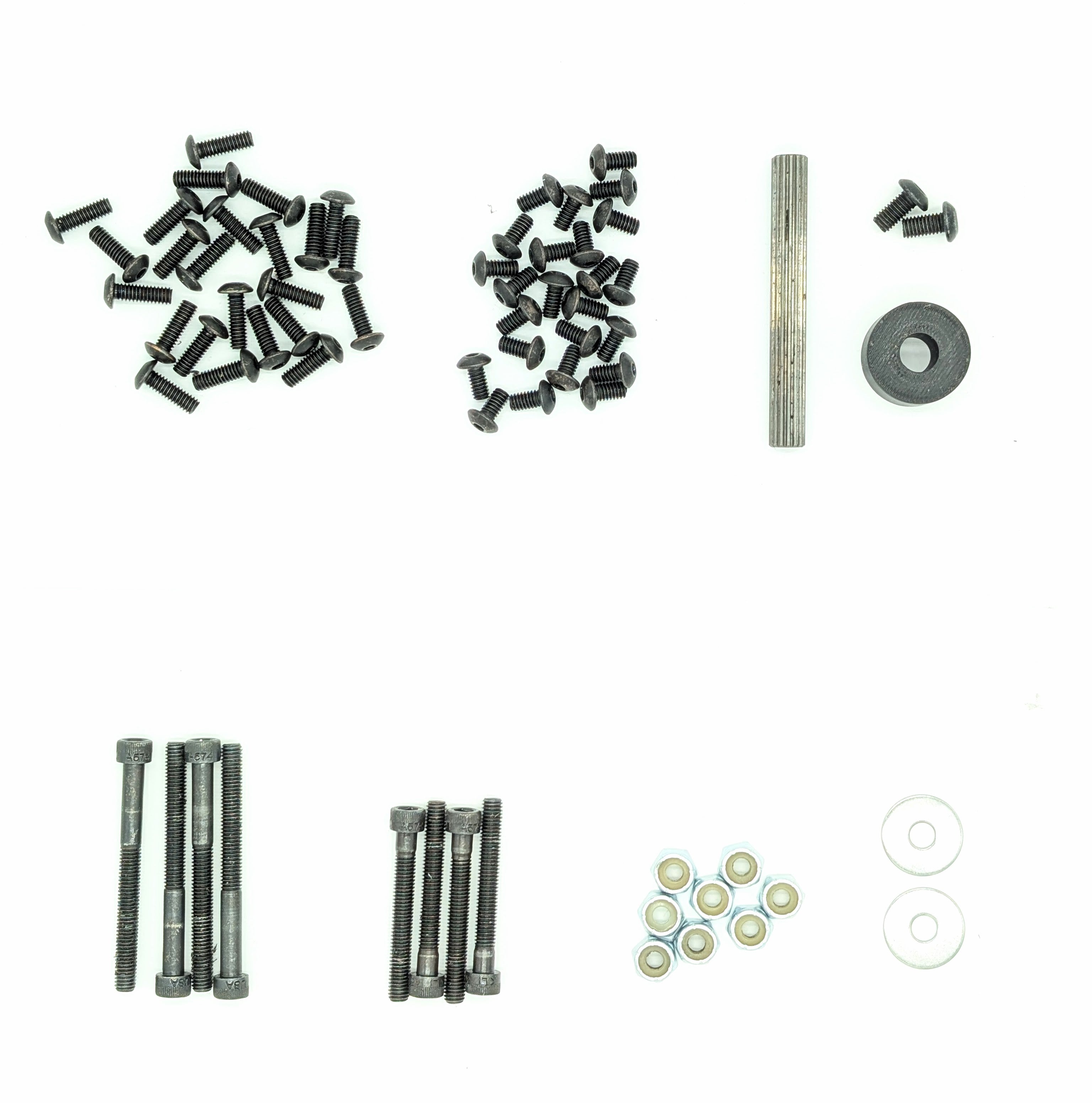

| 1/2" Long 8-32 Button Head Bolts | 91255A194 | 24 |
| 5/16" Long 8-32 Button Head Bolts | 91255A191 | 24 |
| 3/8" Long 10-32 Button Head Bolts | 91255A263 | 2 |
| #10 Washer | 7618 | 2 |
| 2" Long 10-32 Socket Head Bolts | 91251A353 | 4 |
| 1.5" Long 10-32 Socket Head Bolts | 91251A351 | 4 |
| 10-32 Locknuts | 90631A411 | 8 |
