Connect Anything with ConnectorX!
Engineered with the First Robotics Competition in-mind, ConnectorX brings together advanced LED control, flexible sensor integration, and robust power management in a single, easy-to-use breakout board.
Features
- Powerful LED Control: Control up to 320 addressable WS2812B LEDs with integrated power management and automatic brightness optimization

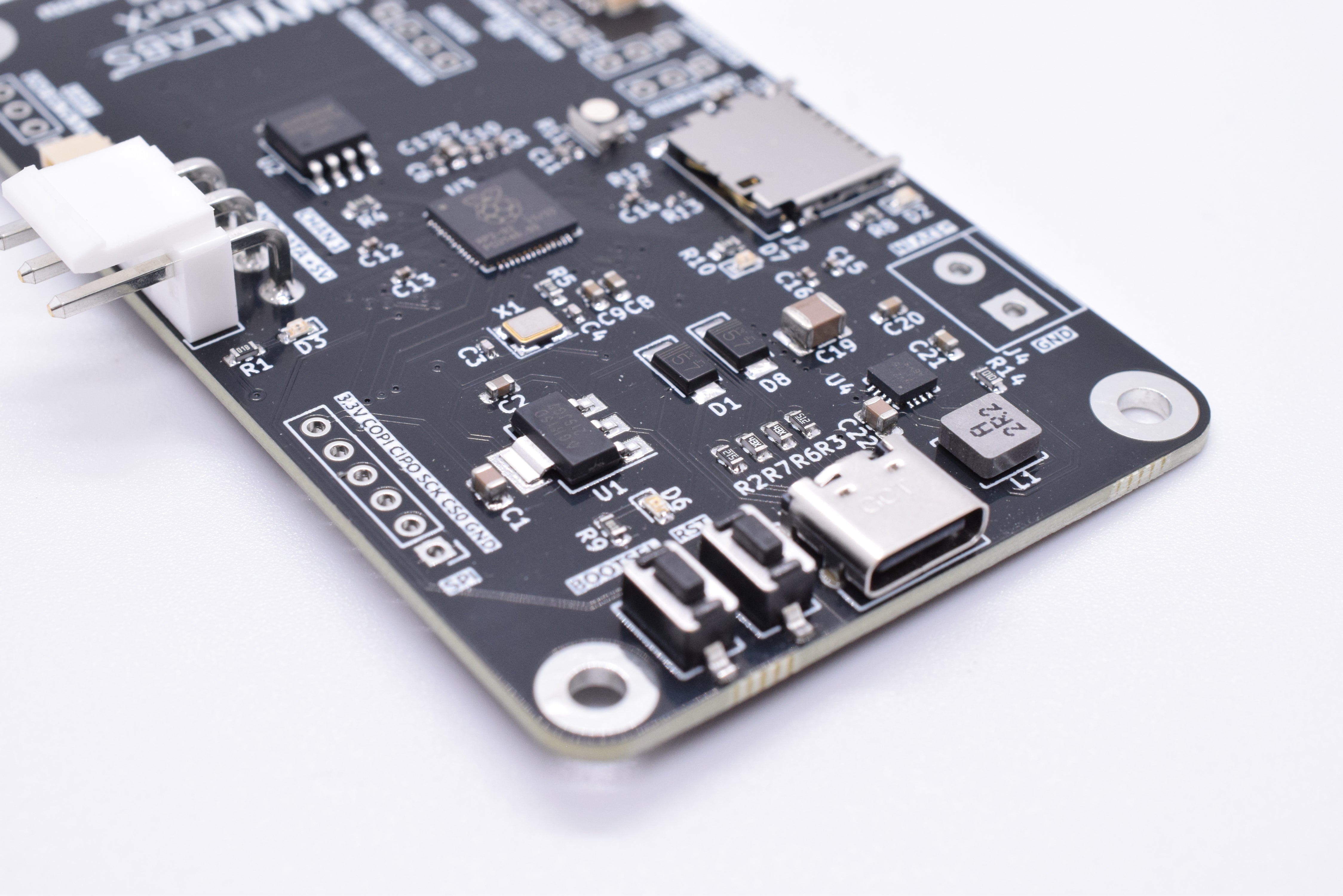

- Flexible Connectivity: Connect via USB-C for configuration or UART with configurable baud rates for seamless robot integration
- Advanced Zone Control: Divide your LED strip into independent zones for targeted animations without complex programming

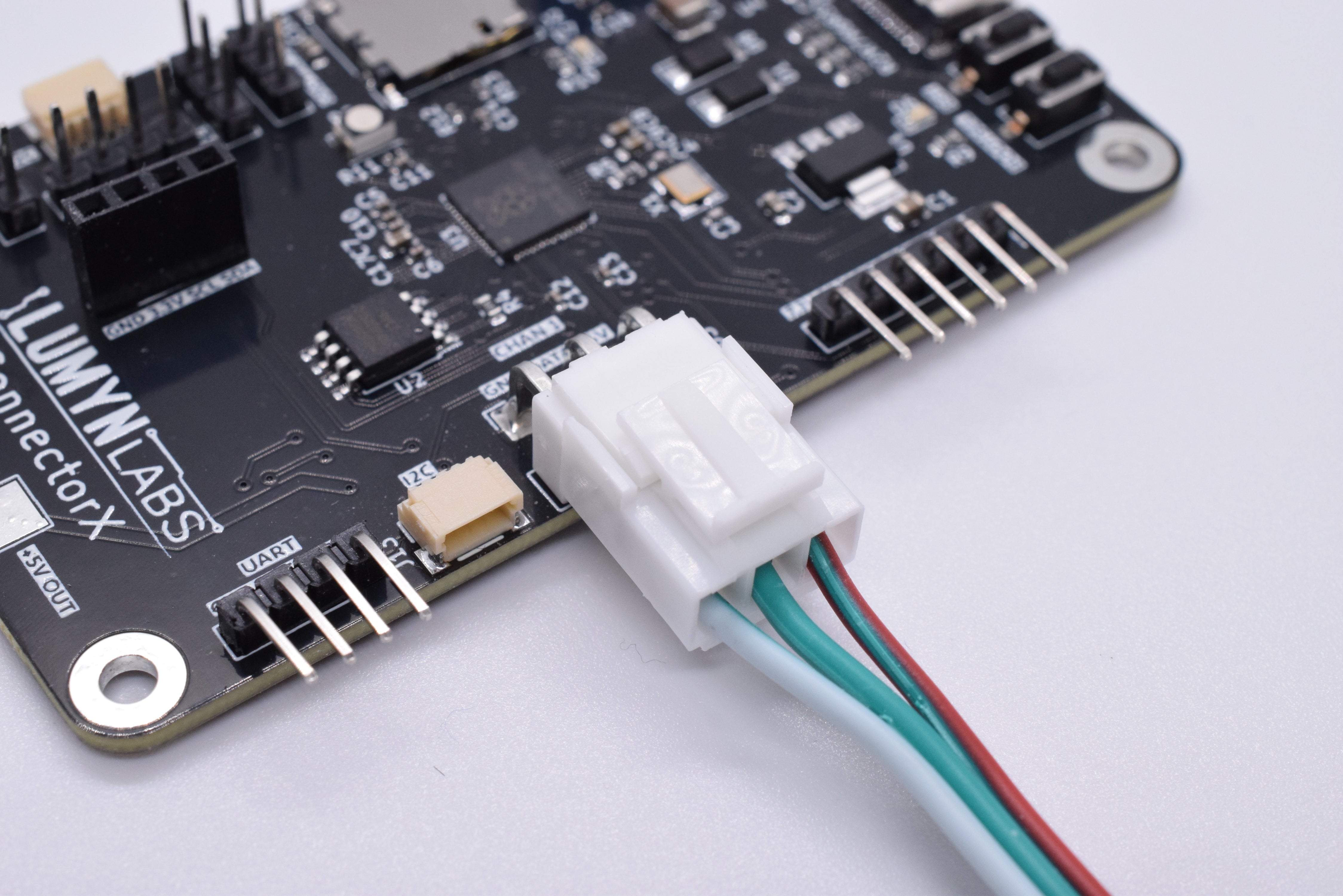

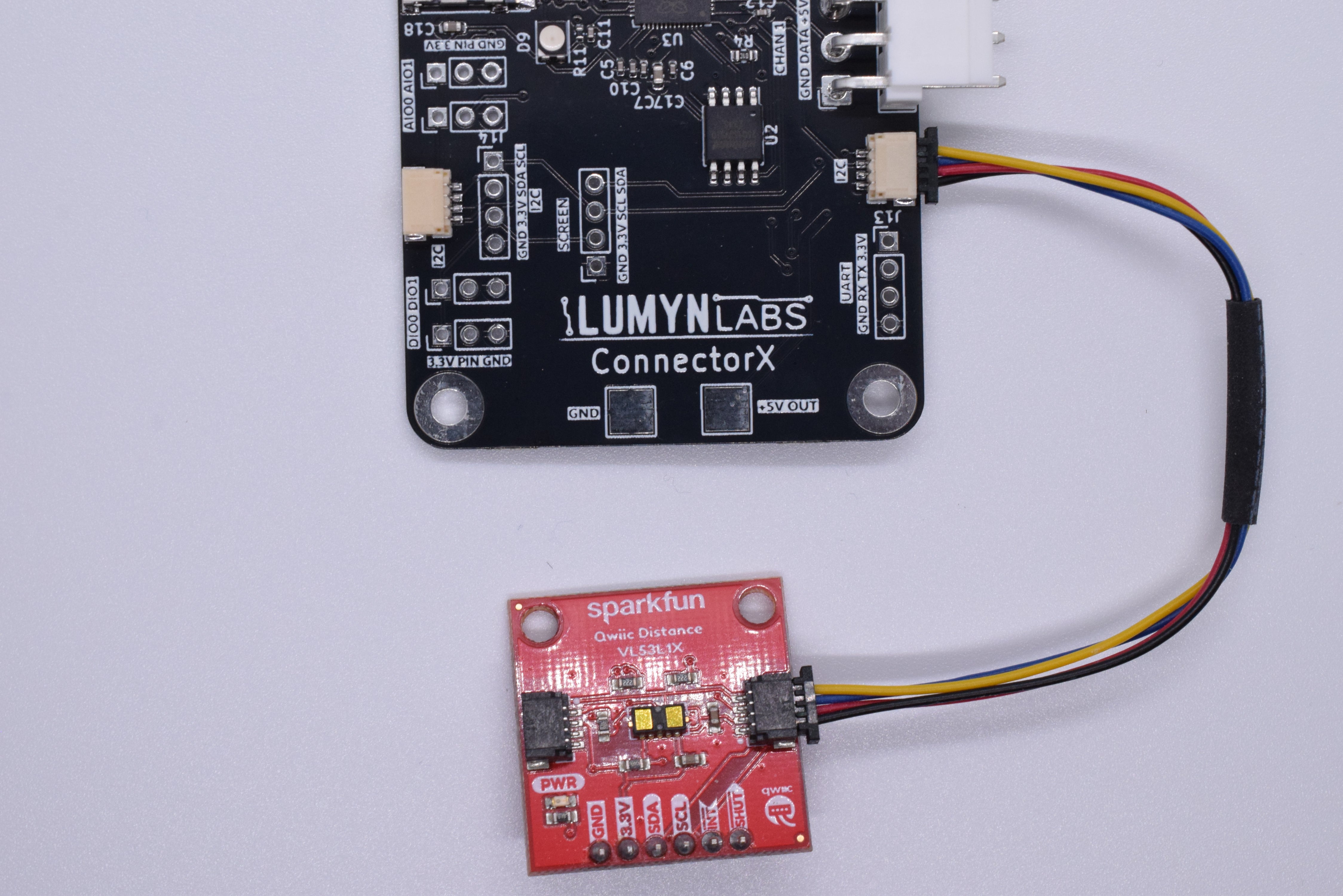

- Sensor Integration: Extend capabilities with module support for I2C, SPI, GPIO, digital inputs, analog inputs, and time-of-flight sensors
- Modern Software APIs: Easily control and configure ConnectorX from Java or C++ (WPILib) and C, C++ or Python (non-WPILib)
Specifications
- LED Channels: 1
- Maximum LEDs: 320
- LED Protocol: WS2812B / NeoPixel compatible
- Connectivity: USB-C, UART
- Power Input: 6-16V input to 5V @3A output
- Module Interfaces: I2C, SPI, GPIO, DIO, AIO
- Configuration: Browser-based Lumyn Studio
- Storage: microSD card
- API Support: Java, C++ (WPILib); C, C++, Python (non-WPILib)

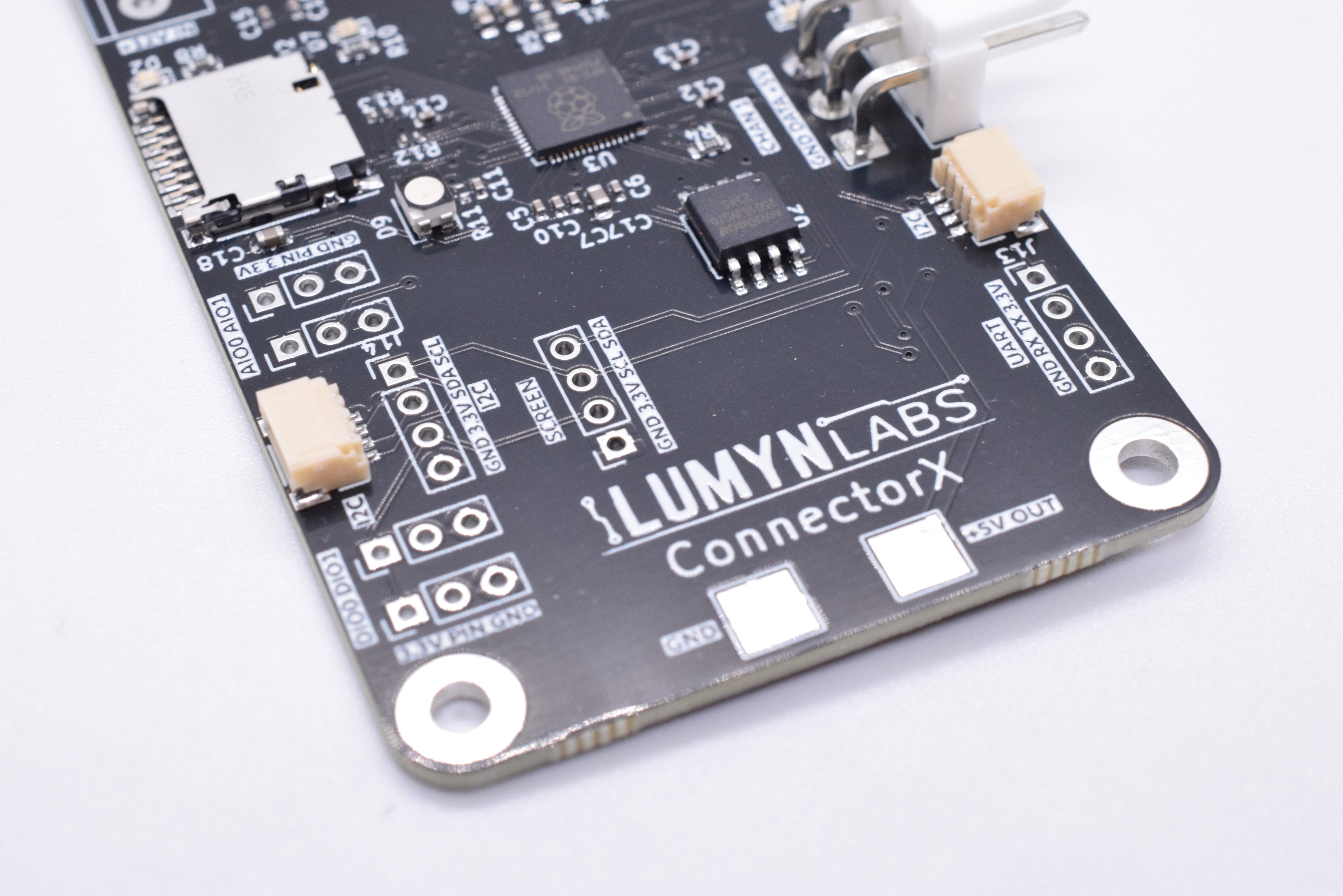

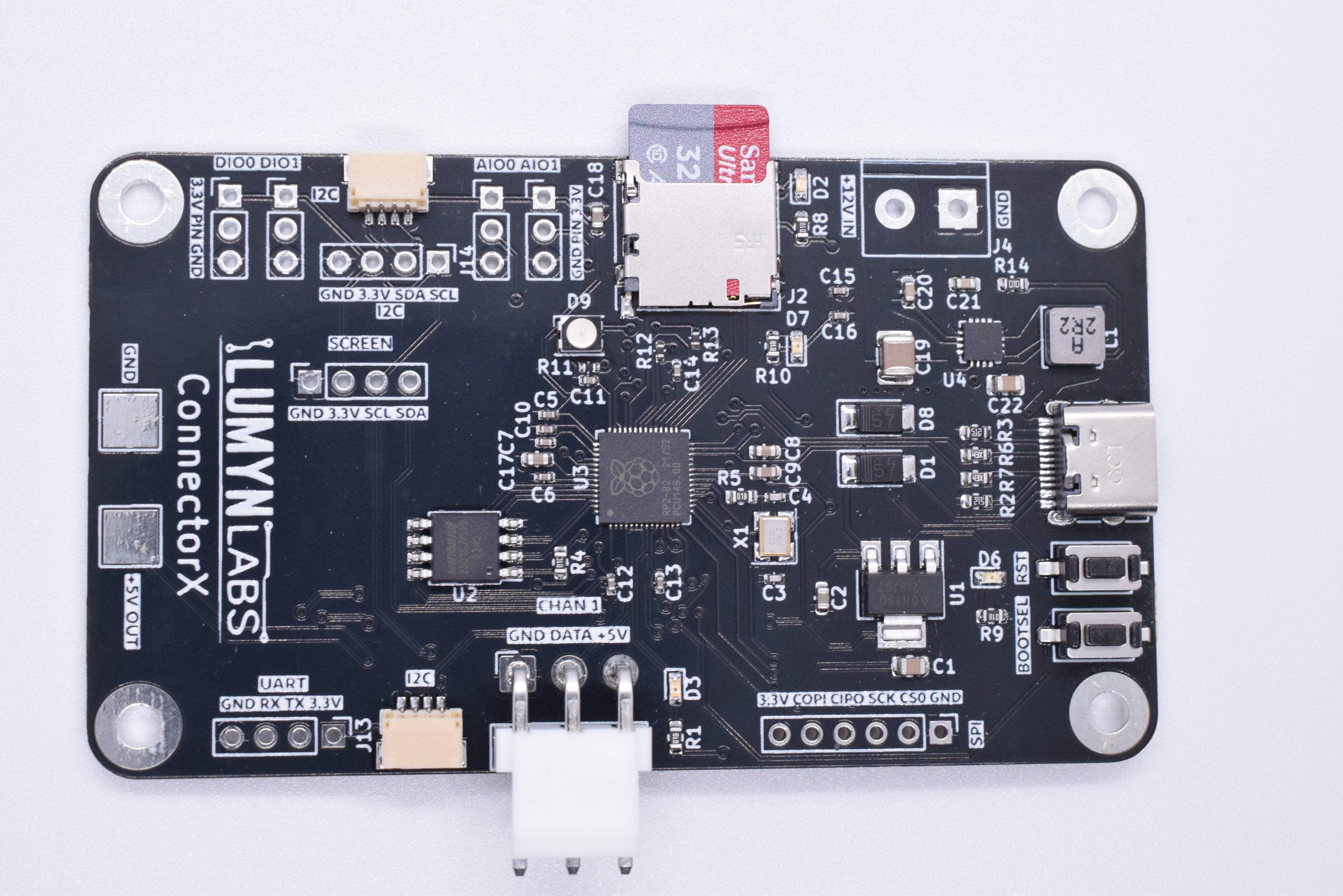

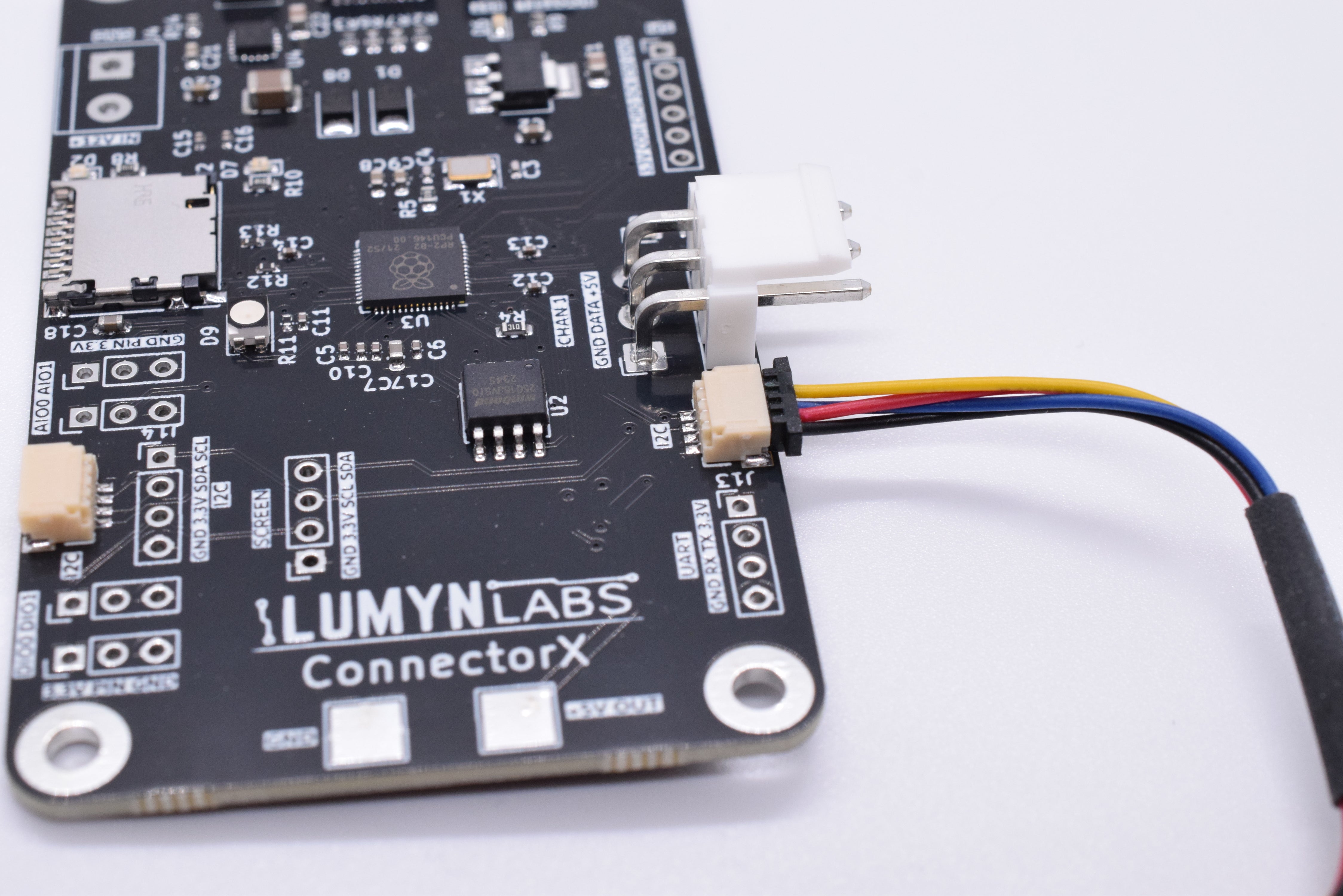

Hardware Interfaces

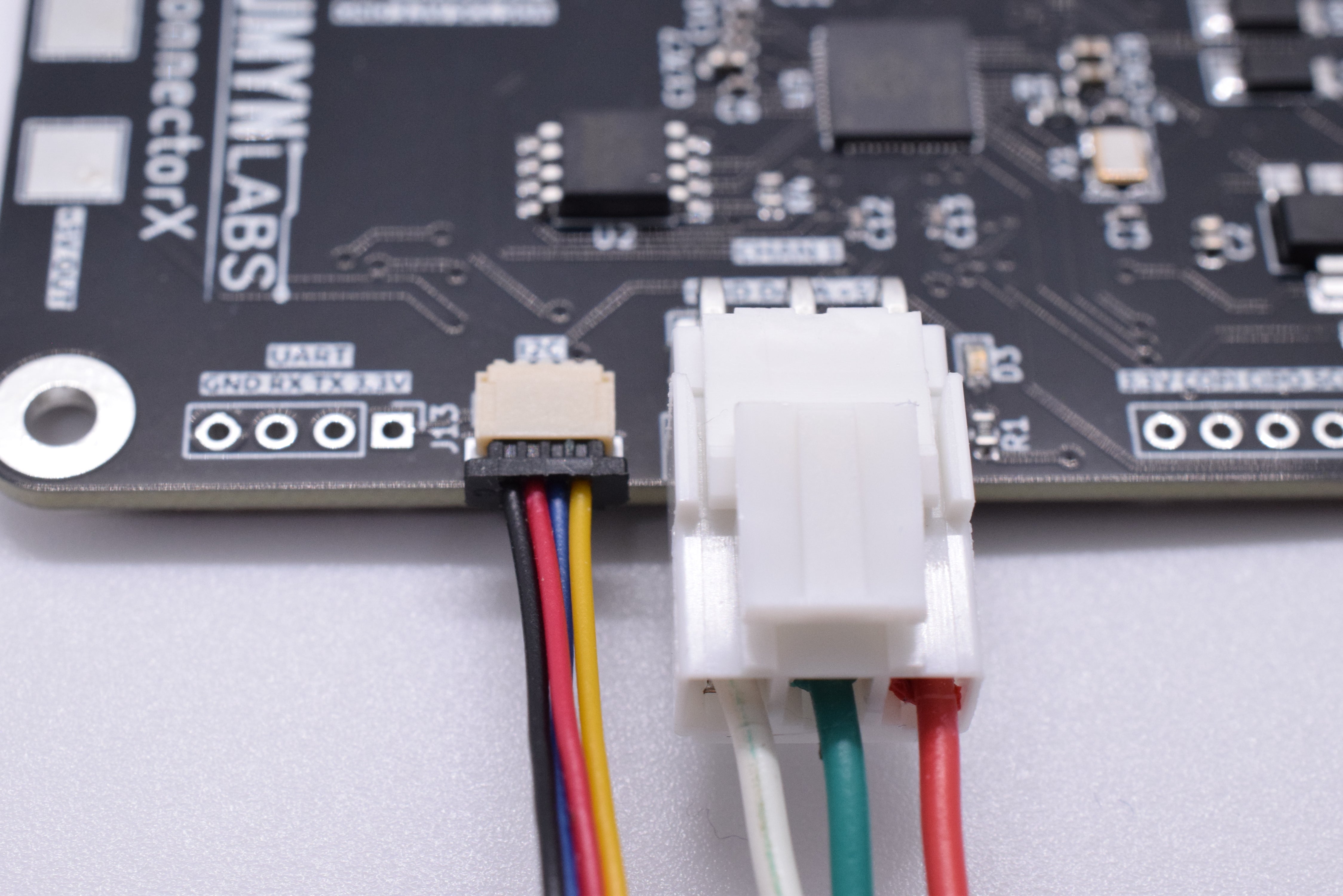

- 2x QWIIC/STEMMA QT (JST-SH 1mm pitch) I2C headers
- 1x I2C 0.1" header
- 1x UART 0.1" header
- 1x SPI 0.1" header
- 2x Digital in/out headers
- 2x Analog in/out headers
- One LED channel
- SD card slot
- Screen connector
