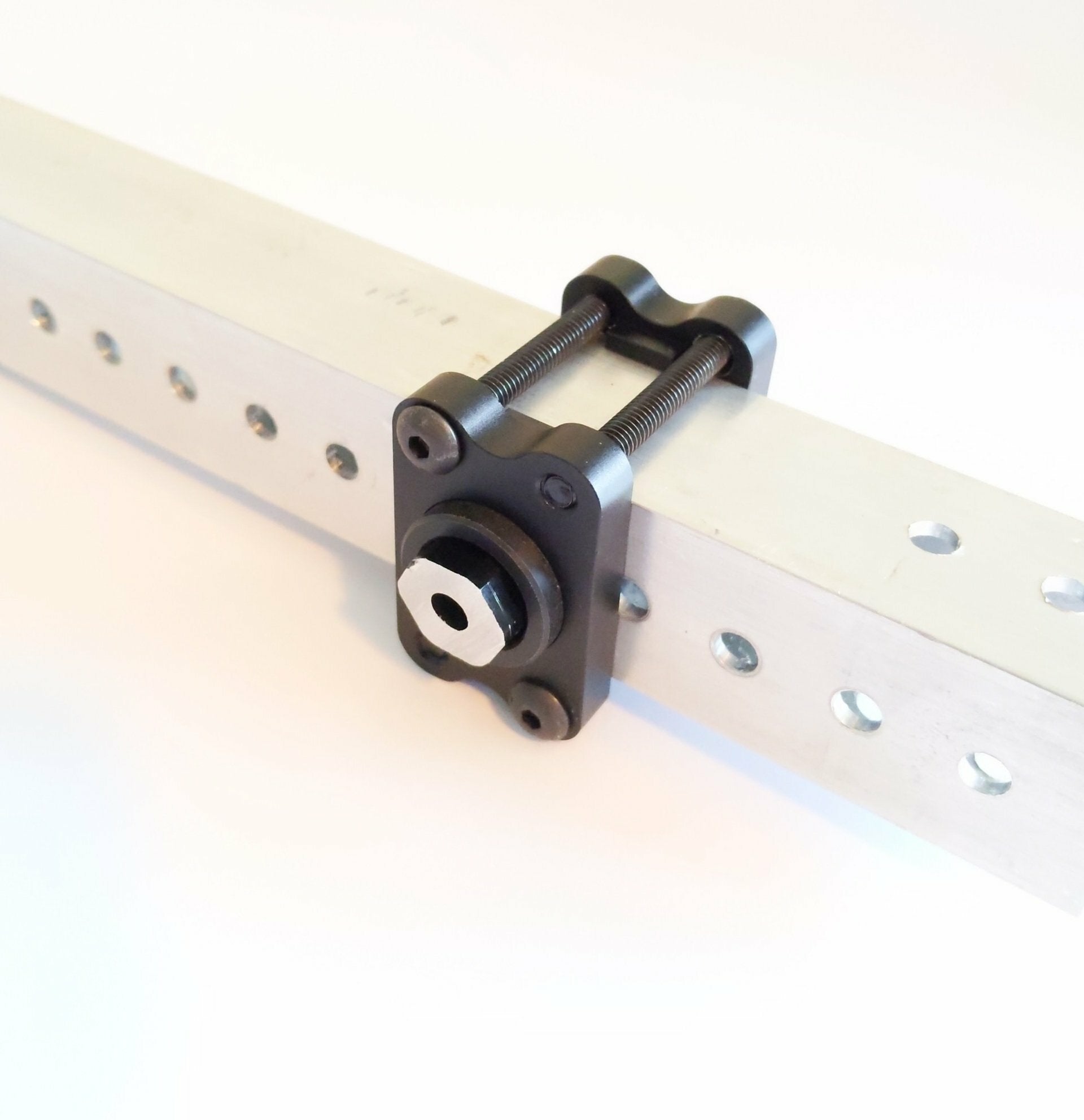

Thrifty Clamping Bushing Block

The Thrifty Clamping Bushing Block provides teams a quick and easy way to capture Thrifty Bushings when mounting to 1" x 1" extrusion. Simply drill a pass thru clearance hole and insert the Thrifty Bushing which is then trapped against the extrusion wall's material.

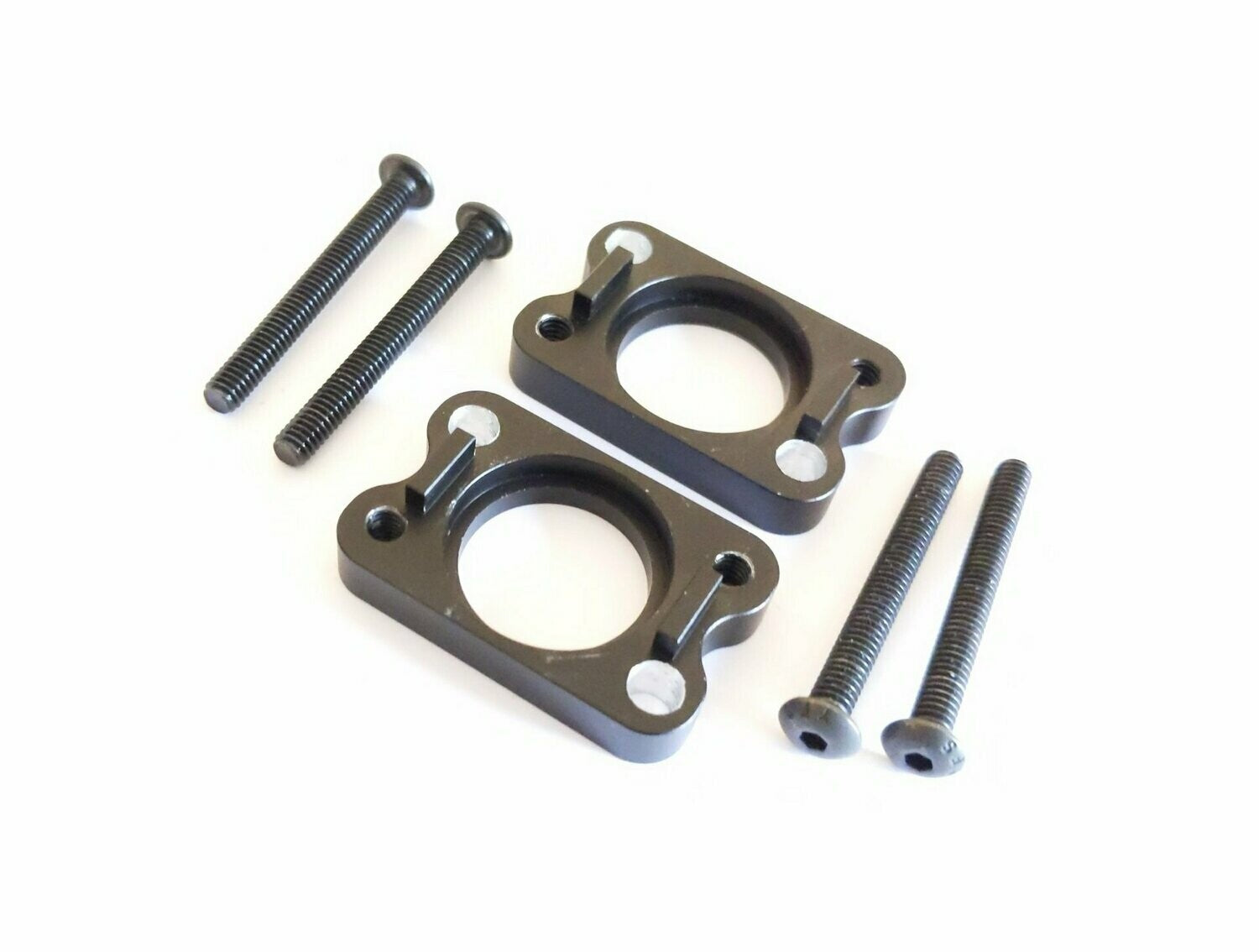

• Kit includes:

- Two black anodized plates

- Four 8-32 1.5" long bolts

- Two Thrifty Bushings

STEP CAD Model Available

6061 aluminum anodized black

Weights:

- One clamping plate: 0.018 lbs (.293 oz)

- Full assembly with 2 thrifty bushings and 4 bolts: 0.072 lbs (1.145 oz)
