Description
Total kit weight: 4 pounds including both 10 ft rolls of 25H chain.
This kit provides the components related to making the 1st stage of your elevator move up and down using #25H chain.

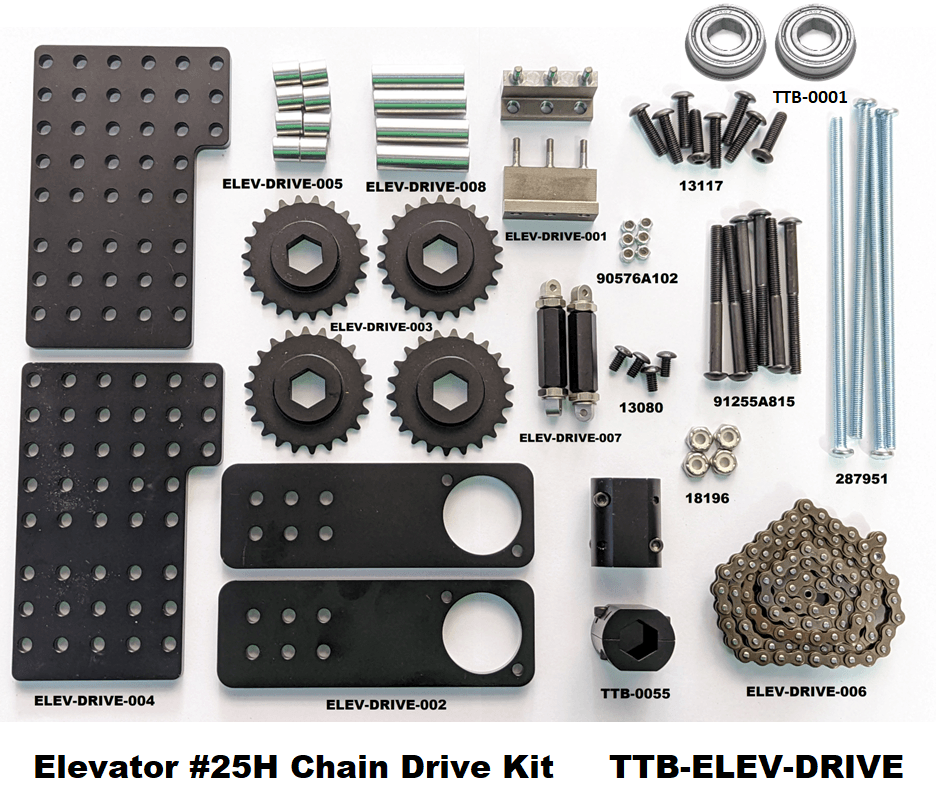

| Elevator #25 Chain Drive Kit (1 kit per elevator) | QTY | TTB-ELEV-DRIVE |
| 25 Chain Attachment Part | 2 | ELEV-DRIVE-001 |
| Top Elevator Bearing Plate | 2 | ELEV-DRIVE-002 |
| 25 Chain 22t 1/2" Hex Sprocket | 4 | ELEV-DRIVE-003 |
| Thrifty Planetary Mount Plate | 2 | ELEV-DRIVE-004 |
| Planetary Mount Spacer | 8 | ELEV-DRIVE-005 |
| 25H Chain 10 ft | 2 | ELEV-DRIVE-006 |
| #25 Chain Tensioner | 2 | ELEV-DRIVE-007 |
| 1.375" Long Aluminum Spacers for Crossbar | 4 | ELEV-DRIVE-008 |
| Half Inch Hex Coupler - TTB-0055 | 2 | TTB-0055 |
| M3 Locknuts | 6 | 90576A102 |
| Button head 10-32 Bolt 2.25" Long | 6 | 91255A815 |
| 5/16" Long 8-32 Button Head Screw | 4 | 13080 |
| 5 Inch Long 10-32 bolt | 4 | 287951 |
| 3/4" Long 10-32 Button Head Screw | 8 | 13117 |
| 10-32 Thin Locknut Half Inch Hex Bearing | 4 2 | 18196 TTB-0001 |
